How Efficient will the Ivanpah Solar Power Tower Really Be?

Reliability and Efficiency

The Ivanpah Solar Electric Generating System (ISEGS), if constructed and operated as
proposed, would generate 400 megawatts (MW) (maximum net output) of electricity, and would use natural gas to generate up to five percent of its capacity. We would like CEC to discuss capacity factor, the actual output of electricity that concentrated solar thermal power plants have produced to date. Without energy storage, the annual capacity factor of any solar technology is generally limited to about 25 percent of maximum according to the Renewable Energy Research Laboratory. ISEGS would not use storage technology.

We disagree with the statement, "[ISEGS] would not create significant adverse effects on fossil fuel energy supplies or resources, would not require additional sources of energy supply, and would not consume fossil fuel energy in a wasteful or inefficient manner" (page 7.2-1). Fossil fuel would have to be burned elsewhere on the grid as baseload, mostly as coal, as solar energy is intermittent. The Ivanpah solar plant will not run during the night, during cloudy days, and on cold winter mornings the small on-site natural gas burners will have to run to heat the system up.

STANDARDS

On page 7.2-2, the Final Staff Assessment/Draft Environmental Impact Statement (FSA/DEIS) states: "So far as staff can determine, methods for determining the efficiency of a solar power plant have yet to be standardized; research has uncovered no meaningful attempt to quantify efficiency. The solar power industry appears to have begun discussing the issue, but a consensus is forthcoming..."

Efficiency in a power plant is a measure of the how much electricity is generated from a unit of energy put into the system (such as coal, natural gas, or photons). In a thermal power plant water is boiled to produce steam, the heat-energy of which is used to turn turbines. But much heat is lost in the process. Some typical efficiency values (From: Eike Roth, Why thermal power plants have a relatively low efficiency, www.sealnet.org; and Romero-Alvarez and Zarza 2007).

Coal - 45-48% efficiency

Natural gas - 58%

Nuclear - 35%

Hydro - 85%

Solar thermal - Central receiver (like ISEGS design): 12% annual net, 16% peak

Solar thermal - Parabolic trough: 14% annual net, 21.5% peak

Photovoltaic silicon - 15%

Wind - 40%

Trying to figure an efficiency calculation to use to compare the Ivanpah solar project future efficiency, CEC uses a proxy from existing natural gas power plants. They say, "As a proxy, we will use an average efficiency based on several recent baseload combined cycle power plant projects in the Energy Commission siting process. Baseload combined cycles were chosen because their intended dispatch most nearly mirrors the intended dispatch of solar plants, that is, operate at full load in a position high on the dispatch authority’s loading order" (page 7.2-15). The average of four natural gas combined cycle 565-696 MW power plants: 53.7% LHV (Lower Heating Value*). This does not seem to compare well with real-world measured efficiencies at existing central receiver solar thermal projects (above), but CEC ignores real-world numbers.

Using this proxy, CEC concludes that the Land Use Efficiency for ISEGS would be 238 MWh/acre-year (solar only, subtracting the natural gas burned for morning warm-up and cloud cover). Of course, this ignores the comparison to local urban point-of-use energy generation projects, such as rooftop solar panels, that take up zero acres of new land.

But why is CEC comparing ISEGS to a baseload plant, which is supposed to produce energy at a constant rate. Examples of baseload plants include nuclear and coal-fired plants. Baseload plants typically run at all times of the year, and all night. Clouds do not turn them off. They also have dispatchability, able to ramp up or down to generate power on a human-based schedule. Peaks or spikes in customer power demand are handled by smaller and more responsive types of power plants called peaking power plants. Peaking plants are typically powered with natural gas turbines. Baseload power plants do not change production to match power consumption demands since it is more economical to operate them at constant production levels. Natural gas is used in base load, intermediate cycle, and peaking units. In California, more than three-quarters of natural gas generation comes from combined cycle gas turbines (CCGT) operated as baseload and intermediate cycle units. Solar thermal power is not dispatchable.

A load-following power plant gradually ramps up and down its power output to respond to scheduled changes in power demand over the course of a day. Gas, pulverized coal, and hydroelectric generators are commonly used to follow the load. "Solar photovoltaic or CSP [concentrated solar thermal, like ISEGS] without storage can approximately follow the load on sunny days, when peak demand is around mid-day" (From Solar Southwest Initiative).

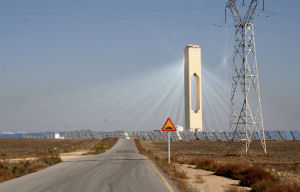

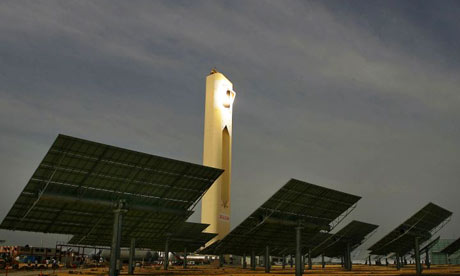

^PS10 power tower in Spain.

So the ISEGS solar thermal power plants should be compared to a load-following plant, not baseload. But not being dispatchable on command, it would compare poorly even with this. We have witnessed the summer monsoon season in Ivanpah Valley shade much of the area with tall thunderheads every afternoon for weeks.

>Summer thundercloud developing over Clark Mountain, a morning in August 2009. Note the overcast sky. The ISEGS site lies just below on the green vegetated fan.

Real World Reliability

The FSA/DEIS states: "Based on a review of the proposal, staff
concludes that the Ivanpah Solar Electric Generating System (ISEGS) would be built and would operate in a manner consistent with industry norms for reliable operation. This should provide an adequate level of reliability" (page 7.3-1).

But even for standard solar thermal plant operation we question the placement of this project on an active floodwash fan in a desert with summer monsoon above the average for the western and central Mojave Desert (where other CSP projects such as Daggett Solar 1 and Kramer Junction, are located).

Concentrating solar power needs a sharp sun image to be efficient. It is best done in deserts where there are no clouds or haze. Dust haze scatters light, and image efficiency plummets. Windstorms blow dust off Ivanpah playa frequently, and could lower efficiency for ISEGS. Cloud cover will force the plant to be turned off during winter and summer storms.

Will high winds whipping through the desert rip 20-foot wide heliostats off their bases like sails?

But what surprises us most is the location of the proposal directly below a large rain catchment basin on the slopes of Clark Mountain (look at the photo above). Did the engineers in the city understand desert alluvial deposition processes, or surficial geology and hydrology?

<Daggett Solar 2 "turned off" with heliostats leveled.

Researchers measured "normal" rain runoff on a fan below the Providence Mountains, just 60 km south of Ivanpah Valley in Mojave National Preserve, from 2003 to 2006. They found that several winter and summer rainstorms delivered more than 10 mm per day of rain, enough to initiate runoff, and some intense summer storms were greater than 60 mm per hour. These redistributed sand, gravel, and organic debris. High-intensity summer rainfall could last an hour, often exceeding the infiltration rates of the soil (Miller et al. 2009).

This was just over three years. Over the 50-year proposed lifespan of the ISEGS larger storms will occur, possibly as damaging as the flood that hit Furnace Creek in Death Valley National Park, and Surprise Canyon in the Panamint Mountains, California.

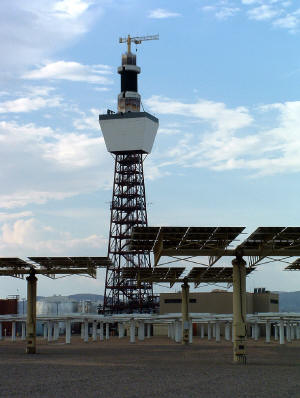

>Colon 70 model heliostat from PSA project, Almena, Spain.

This is an active sloping alluvial fan, not a stable flatland, seemingly not appropriate for a delicate heliostat array. In describing the engineering of a collector field, Romero-Alvarez and Zarza (2007:21-53) state: "Because of the large area of land required, complex algorithms are used to optimize the annual energy produced by unit of land, and heliostats mst be packed as close as possible so the receiver can be small and concentration high. However, the heliostats are individual tracking reflective Fresnel segments subject to complex performance factors, which must be optimized over the hours of daylight in the year, by minimizing the cosine effect, shadowing and blocking, and receiver [light] spillage."

Tracking control mechanisms continuously move the heliostats so that they focus solar radiation on the tower receiver. "During cloud passages and transients the control system must defocus the field and react to prevent damage to the receiver and tower structure" (ibid: 21-52).

What if sediments from alluvial runoff tilt several heliostats in the field? Will operators be able to find and correct all heliostat deviations? How long will the plant be shut off while inspections are done after each storm and repairs are made? How much of a tilt would cause tower damage as reflected sun beams are aimed in the wrong direction?

<An exacting science: Hot sunbeams reflected by heliostats onto the central receiver tower, PS10 plant in Spain. Solar influx on the receiver can get to 1000 degrees Celsius (ibid:21-51).

In an investment cost breakdown of building a central receiver solar thermal power plant the heliostat field is the single most expensive part of the project, 40% of total capital costs. The power block comes next, at 32% of total (ibid:21-53).

Yet, "Staff believes there are no special concerns with power plant functional reliability due to flooding (page 7.3-6).

Real World Capacity

Utility-scale renewable energy companies like to say how many thousands of houses their power plants will supply, and the newspapers slavishly print these numbers. But they neglect to tell us about capacity factors. The stated wattage, or 'nameplate capacity,' is when the sun is shining full-on on a cloudless day. It does not take into account night, short winter days with low sun angle, cloudy and rain days, windy days when the facility will be shuttered, or maintenance (if not done at night). Every generating plant has a capacity factor (the net capacity factor of a power plant is the ratio of the actual output of a power plant over a period of time and its output if it had operated at full nameplate capacity the entire time).

Typical capacity factors:

^New advanced Abengoa Solar power tower PS10 in Spain, with saturated steam cavity receiver. In winds over 22.5 mph the plant must be turned off and the mirrors leveled; over 87 mph and the plant might be destroyed. The Mojave desert is a windy place, but many such power towers are planned.

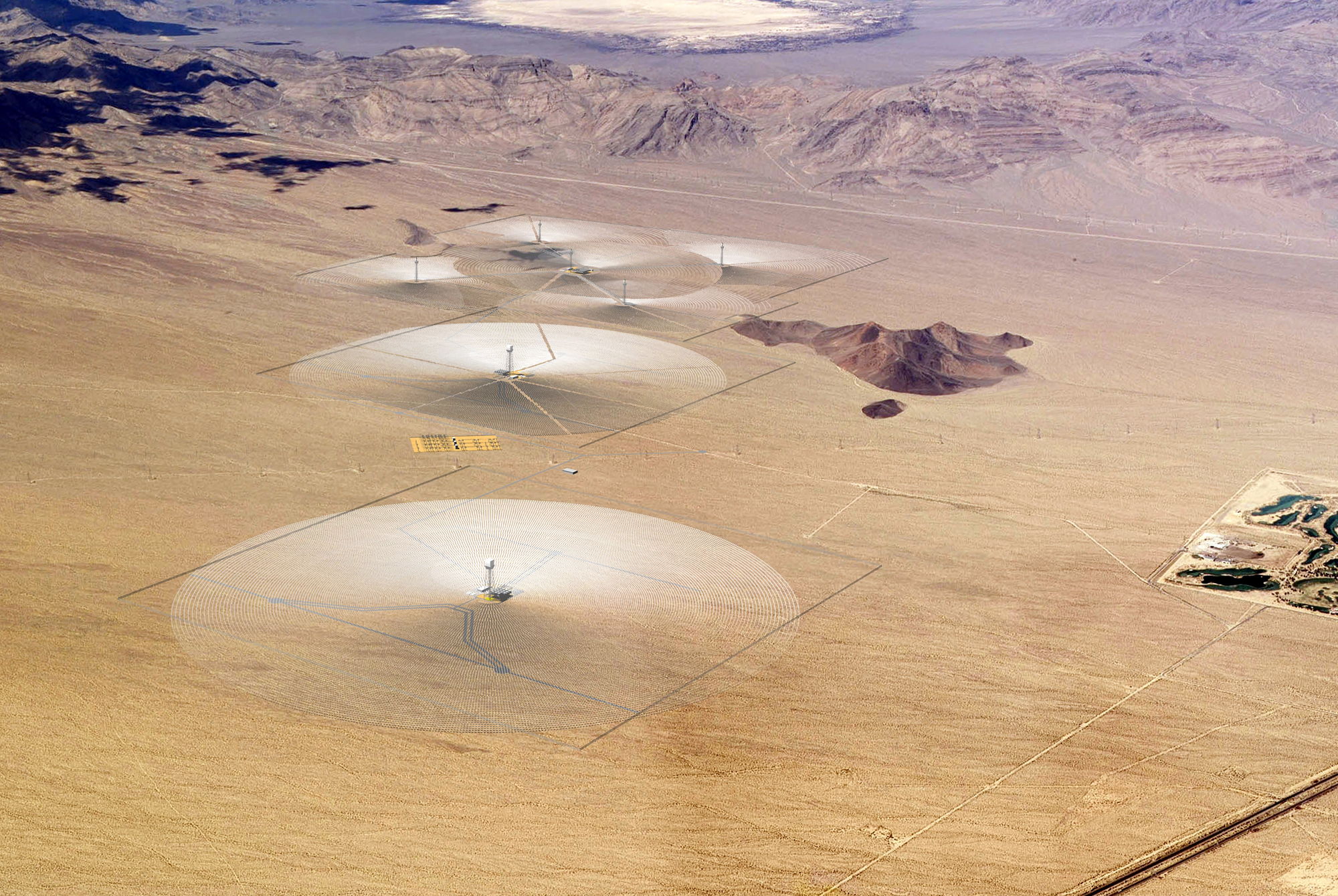

^Brightsource's Ivanpah Solar Electric Generating System proposal in California's Mojave Desert. At over 4,000 acres this plant's nameplate capacity is only 400 megawatts (MW): with a capacity factor of 25% that would equal 100 MW. Compare this low efficiency to Southern Co./Georgia Power Co.'s Plant Bowen coal-burning power plant which occupies 2,000 acres but puts out 3,160 megawatts maximum at 70-90% capacity. This does not take into account the terrible cost of mountain-top removal mining for coal in the Appalachias, but the question should be asked how solar thermal will replace coal? Desert-top removal is just as bad.

Baseload vs. Peak

Based on reports filed by the nation’s utilities with the Federal Energy Regulatory Commission, about 75% of electricity consumption is baseload and about 25% is intermediate or peak load. Demand is full-time, but wind and solar are part-time.

In the absence of electricity storage, there is no such thing as wind/solar by itself — there is only 30% wind/solar combined with 70% natural gas, or 30% wind/solar combined with 70% coal.

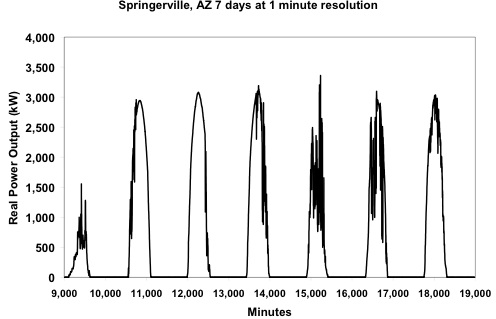

^Intermittent power: Real power output (kW) sampled with one minute resolution for a 4.6 MW solar photovoltaic array in northeastern Arizona for one week (from Carnegie Mellon Electricity Industry Center Working Paper CEIC-08-04, The Spectrum of Power from Utility-Scale Wind Farms and Solar Photovoltaic Arrays, by Jay Apt and Aimee Curtright).

Cost

Another inconvenient truth working against the 'Green Economy' is the high cost of many types of renewable energy compared to fossil fuels. Solar technologies in general remain too costly for grid-connected applications without heavy government subsidies (from Department of Energy).

A Combined Cycle Gas Turbine power plant today costs roughly $1,100/kW - $1,500/kW to build, one of the cheapest power plant options. The price of natural gas electricity costs 3.9 to 4.4 cents/kWh, according to Pure Energy Systems Wiki. The market cost for coal is around 2-3 cents/kwh. The levelized cost of coal is around 4-5.8 cents/kwh. Nuclear generation costs 11.1 to 14.5 cents/kWh.

Parabolic trough solar thermal costs for electricity run from 15 to 18 cents/kWh.

Costs for solar thermal plants: the Nevada One plant completed in 2007 was built for roughly $3,600/kW of capacity. (Source http://www.energybulletin.net/49878)

We note that according the the U.S. Department of Energy, photovoltaics which can easily cover rooftops all over cities and towns, can cost below 11¢/kWh, on par with some utility-delivered power, in the California market where state incentives and net metering are in place.

Add Transmission

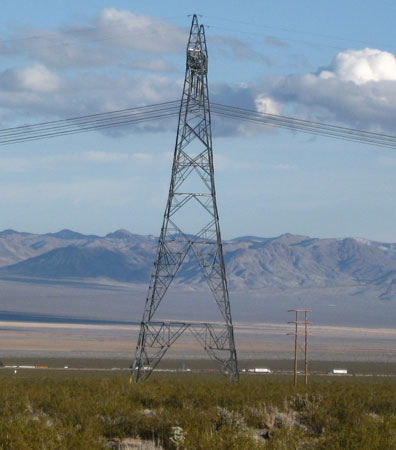

For remote solar plants like the Ivanpah project, built hundreds of miles from cities, the cost of upgrading and building new powerlines needs to be factored in.

The costs of single-circuit alternating current transmission lines for 1989: for a 230 kilovolt line - $150,000 to 375,000 per mile, for a 500 kV line - $400,000 to 800,000 per mile. (Source: Electric Power Research Institute, Technical Assessment Guide: Electric Supply, 1989, Vol. 1, Revision 6, Golden, CO, November 1989, p. B-4)

This cost is passed onto ratepayers, a Southern California Edison representative told us. The Eldorado-Ivanpah Transmission line upgrade alone would make the rates of SCE go up about 5 to 10 cents per power bill per customer. Each additional project that would require an upgrade would also add to the power bills.

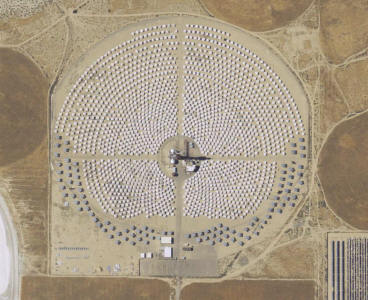

<Daggett Solar 2 aerial view (Courtesy Google Earth).















^On the ground at the site: Ivanpah Valley looking southeast towards the Clark Mountain Range and New York Mountains in Mojave National Preserve. Creosote and Buckhorn chollas frame the scene.



* The Lower Heating Value (also known as net calorific value) of a fuel is defined as the amount of heat released by combusting a specified quantity (initially at 25°C) and returning the temperature of the combustion products to 150°C, which assumes the latent heat of vaporization of water in the reaction products is not recovered.

REFERENCES:

Miller, David M., David R. Bedford, Debra L. Hughson, Eric V. McDonald, Sarah E. Robinson, and Kevin M. Schmidt. 2009. Mapping Mojave Desert ecosystem properties with surficial geology. In, The Mojave Desert: Ecosystem Processes and Sustainability. Edited by Robert H. Webb, Lynn F. Fenstermaker, Jill S. Heaton, Debra L. Hughson, Eric V. McDonald, and David M. Miller. University of Nevada Press: Reno and Las Vegas.

Romero-Alvarez, Manuel and Eduardo Zarza. 2007. Concentrating Solar Thermal Power. In, Frank Kreith and D. Yogi Goswami (eds.), Handbook of Energy Efficiency and Renewable Energy. CRC Press: Boca Raton, London, New York.
